400W Single Drive Wheel Series Agv Wheels Manufacturers Hot Sell Model
Single wheel design can adjust position according to agv width.Suspension device with shock absorption.Interface standardization, convenient connection and simple control.The motor driver can be with magnetic navigation algorithm to facilitate users to develop AGV.
This is ouer recommend model, equipped with a planetary reducer, it adopts the integrated design of planetary structure, and the servo motor is designed inside the planetary gear. It has the characteristics of compact struture, high transmission effciency, low noise and precise control.
Specification
| Item | Motor Data |
| Model | ZL-220-400-05-48-30 |
| | Traction Data | Steering Data |
| Motor Type | Servo / BLDC | Servo / BLDC |
| Power S2-60 min | 100-750W | 50-150W |
| Rated Voltage | 48V | 48V |
| Rated Speed | 3000rpm | 3000rpm |
| Rated Torque | 0.32-2.39 | 0.16-0.64 |
| Gear Ratio | 30I | 70I |
| Wheel Diameter | 160mm | / |
| Brake Torque | / | / |
| Encoder | Optional | Optional |
| Mechanical limit range | ±120° | |
Description

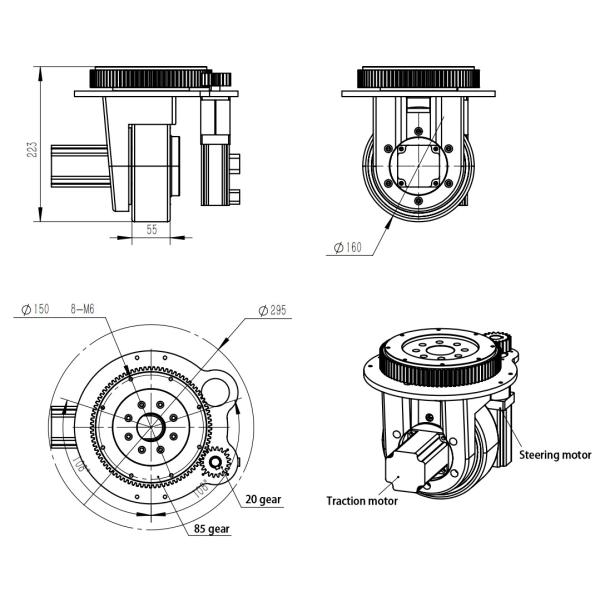

The steering wheel is an integrated mechanical structure integrating drive motor, steering motor, planetary reducer, etc. It integrates product, walking, traction and steering functions, and can load and tow heavier goods. It can quickly deploy AGVs, mobile robots, etc. Perfectly meet the application requirements of AGV.
Therefore, steering wheel drive is the development direction of AGV applications. Compared with the traditional AGV trolley differential speed control method, the steering wheel has high integration, strong adaptability, higher precision and faster response when used with the servo system.
Dozens of steering wheels have been developed to be applicable to different industrial fields. Because of different customer needs and use environments, we also provide customized drive wheels.
(Such as installation height, wheel surface material, gear, speed, encoder, etc.)
This model is equipped with a brake on the basis if the above two models. when the motor stops running, the brake ciol is de-energized at the same time, and the brake spring pushes the brake pad to look the motor shaft, and the brake function can be completed.
Feature
The single drive wheel adopt the high-quality aluminum and rubber as raw material.
Universal applicability
It can adapt to a variety of vehicle. High quality with resonable price.
Servo motor
This model is servo motor. Servo motors have higher accuracy.
RFQ
Q1: Are you trading company or manufacturer ?
A1: We are manufacturer & Trading
Q2: Do you have your own R&D team?
A2: Yes, we can customize products as your requirements.
Q3: How about the quality?
A3: We have the best professional engineer and strict QA and QC system.
Q4: Can we be your distributor?
A4: We are looking for distributor and agent all over the world.
Q5: How’s the package?
A5: Normally are cartons, but also we can pack it according to your requirements.
Q6: How’s the delivery time?
A6: It depends on the quantity you need, 1-35 days usually.
