Integral Damping Impco 10Inches AGV Drive Wheel Sinolift Noblelift Rubber Wagon Wheels

Product Categories
Guangzhou Wisdom Wheel Science Technology Ltd.
Contact Now

Integral Damping Impco 10Inches AGV Drive Wheel Sinolift Noblelift Rubber Wagon Wheels

Brand Name : ZHLUN

Model Number : ZL-543

Certification : ISO

Place of Origin : China

MOQ : 1

Price : $3200-4500

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 30 per month

Delivery Time : 30 days

Packaging Details : Wooden box

Warranty : 1 Year

Machinery Test Report : Provided

The Wheels Material : Polyurethane or Rubber

Services : Customized

Load Capacity : 3000kg

Shock Store : ±10

Damping Pressure : 1500kg

Contact Now

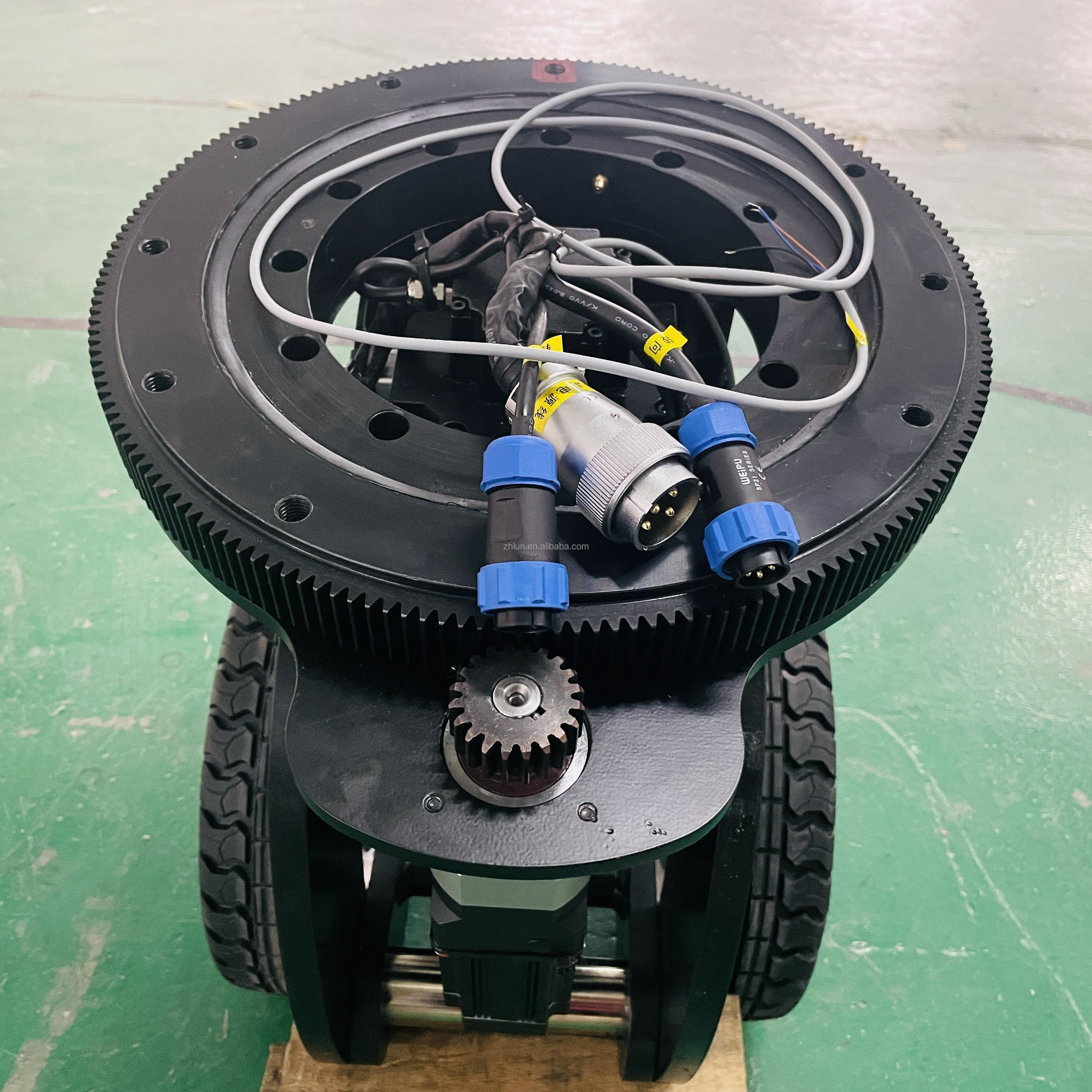

ZL-B543 Agv Integral Damping Steering Wheel Impco 10 Inches Sinolift Noblelift Rubber Wagon Wheels Agv Vertical Steering

Main Features:

1) Integrates an electric motor with an industrial caster to create a single unit that can be easily added to carts, racks, or just about anything that rolls on casters.

2) The load capacity, wheel size, color, mounting height and other spec all can be customized, please feel free to consult our engineers about your needs!
3)A shock absorber is installed to protect the cargo to a certain extent when going downhill or walking on a relatively uneven road.

Product Paramenters
Integral Damping Impco 10Inches AGV Drive Wheel Sinolift Noblelift Rubber Wagon Wheels
Integral Damping Impco 10Inches AGV Drive Wheel Sinolift Noblelift Rubber Wagon Wheels
Technical parameters of damping steering wheel
Traction motor
Speed Ratio
7-120I
Motor Type
Servo/Brushless
Wheel Diameter
270*270mm
Rated Power
1000-3000W
(Customizable)
Fastest Speed
20-200m/min
(Customizable)
Rated Voltage
DC24/48,AC220
Shock stroke
±10(Customizable)
Rated Speed
3000RPM
(Customizable)
Damping Pressure
1500KG
Rated torque
3.18-9.68N.m
Customizable)
Temperature
-10to+55°C
Integral Damping Impco 10Inches AGV Drive Wheel Sinolift Noblelift Rubber Wagon Wheels
Steering motor
Motor Type
Servo/Brushless
Rated Power
400-750W
(Customizable)
Rated Voltage
DC24/48,AC220
Rated Speed
3000 RPM
(Customizable)
Rated Torque
1.28-2.39N.m
(Customizable)
Reducer Speed Ratio
30-120I
Mechanical Limit Range
±120°
Angle Limit
proximity switch
NPN/PNP
Product Application
Integral Damping Impco 10Inches AGV Drive Wheel Sinolift Noblelift Rubber Wagon Wheels
Integral Damping Impco 10Inches AGV Drive Wheel Sinolift Noblelift Rubber Wagon Wheels
Product packaging and Transportation
Integral Damping Impco 10Inches AGV Drive Wheel Sinolift Noblelift Rubber Wagon Wheels
Company Profile
Integral Damping Impco 10Inches AGV Drive Wheel Sinolift Noblelift Rubber Wagon Wheels
Guangzhou Wisdom Wheel Science Technology LTD.
Guangzhou Wisdom Wheel Science Technology Ltd. is a high-tech enterprise integrating service research ,design, production,sales,service and system integration.with a number of independent intellectual property rights. According to application requirements, various types of AGV steering wheel drive assemblies with independent intellectual property rights have been developed, including heavy-duty, shock-absorbing. low and Mini ,differential steering drive wheels,etc.,which are suitable for various application fields; Based on the application, the company independently designed and developed heavy-duty AGV,heavy-duty unmanned flatbed truck, omnidirectional forklift, special assembly AGV, service robot, AGV intelligent parking and other products,providing customers with customized AGV customization and wholeheartedly providing technology Support and expand the application field of AGV.
Integral Damping Impco 10Inches AGV Drive Wheel Sinolift Noblelift Rubber Wagon Wheels
Integral Damping Impco 10Inches AGV Drive Wheel Sinolift Noblelift Rubber Wagon Wheels
China International Logistiscs Robot Exhibitions.
Integral Damping Impco 10Inches AGV Drive Wheel Sinolift Noblelift Rubber Wagon Wheels
Asia International AGV Exhibition
Integral Damping Impco 10Inches AGV Drive Wheel Sinolift Noblelift Rubber Wagon Wheels
Asia International Logistics Exhibition
Certifications
Integral Damping Impco 10Inches AGV Drive Wheel Sinolift Noblelift Rubber Wagon Wheels
Our Advantages
1.Rich industry application experience and reasonable overall layout of AGV plan.
2. Have strong design and integration capabilities to help projects be easier to implement.
3. Customized services,fully considering customer needs.
4. Better solutions, faster design,production and commissioning.
5.the pre-sale, sale and after-sales service are thoughtful,providing free technical support throughout the process.
FAQ
Q: Can your company adjust the product according to the customer's situation?
A: Yes. We will send you the steering wheel order configuration table. Customers can fill in the relevant parameters according to their own situation. We can adjust the steering wheel parts according to customer needs
There are speed ratio, speed, walking motor, motor voltage, brake, etc., there are more detailed instructions in the product
parameter table, we welcome customization.

Q: How about your after-sale service?
A: We can provide technical support via online communication. Within 24 hours technical support by email, calling or door-to-door service.

Q: How can I trust the quality of your products ?
A: The AGV steering wheel assembly series products are independently researched and developed by our company. We have variety of international quality certificates, We have our own unique planetary reducer developed and designed, we do a series of product tests before shipping.

Q: How can we make sure about the machine quality after placing the order?
A: Before delivery, we will running half hour of the machine to checking the stability and sending you the testing video until you satisfy. We will setting all the parameters well.

If you want to know more product details outside the picture, please contact us.
