ZL-350 Curtis Programmer AGV Drive Wheel Sinolift Pneumatic Wheel Reach Dobot Recanvia

Name: ZL350 Curtis Programmer AGV Drive Wheel Sinolift Pneumatic Wheel Reach Dobot Recanvia
Brand: ZHLUN
Price: 2600 USD

Wholesale ZL-350 Curtis Programmer AGV Drive Wheel Sinolift Pneumatic Wheel Reach Dobot Recanvia from china suppliers

Brand Name : ZHLUN

Model Number : ZL-350

Place of Origin : China，Guangdong

MOQ : 1set

Price : $2600-4300

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 30 per month

Delivery Time : 30 days

Packaging Details : Wooden box

Warranty : 1 Year

The Wheels Material : Polyurethane， Rubber

Machinery Test Report : Provide

Services : OEM，ODM

Load : 1000 KG

Weight : About 35kg

Speed : 200-200（m/min）

Contact Now

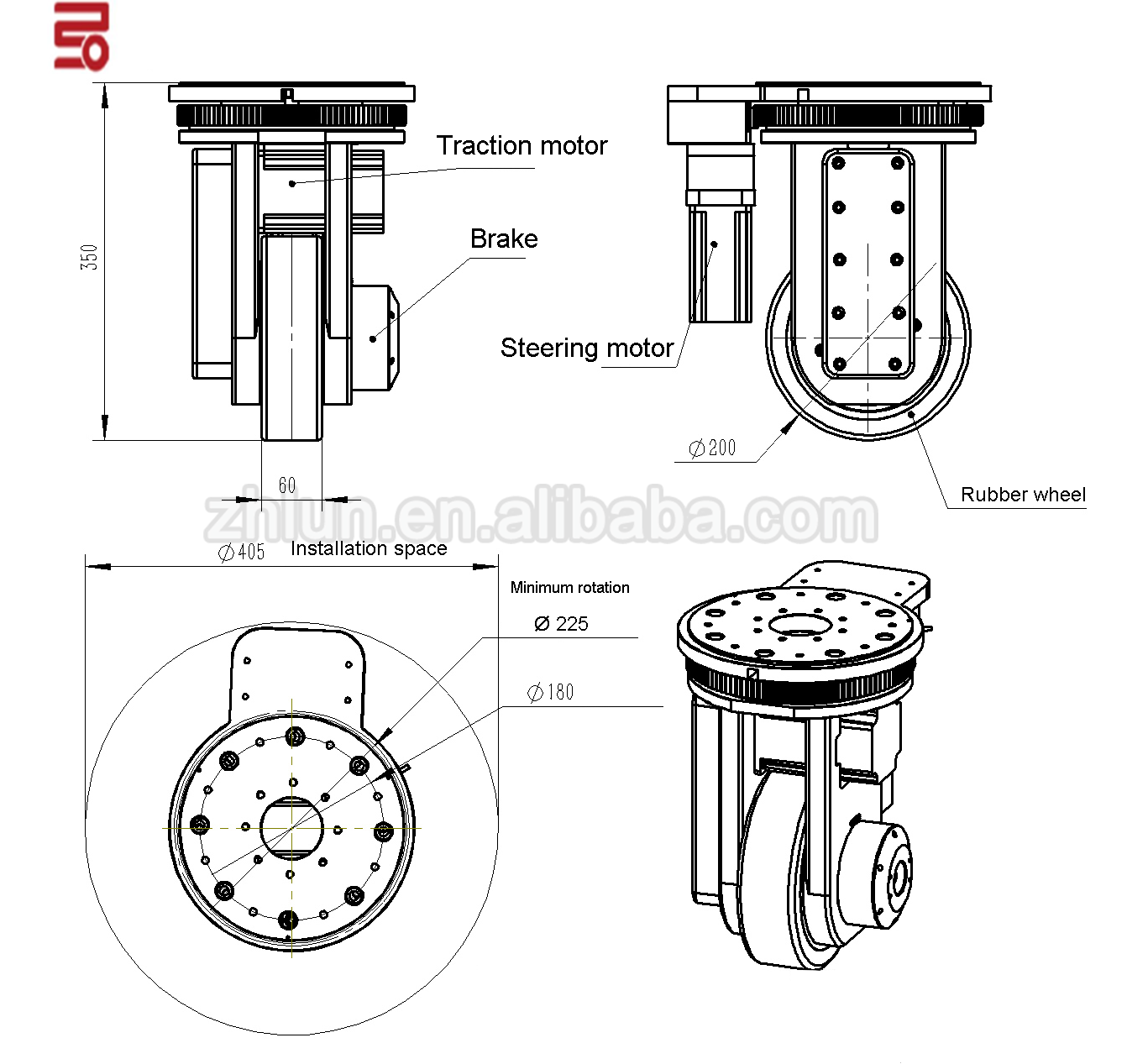

The model of this product is ZL-350. Its wheel diameter is 200MM. Polyurethane and rubber for driving wheel.

Vertical drive wheels are available with and without steering. The vertical drive wheel is more suitable for outdoor applications, and its mechanical characteristics can achieve wading walking, and has better passing ability and climbing obstacle obstacles.This type of drive wheels are mainly used in AGV, forklift, Robots & Automation industry

Product Paramenters

ZL-350 Curtis Programmer AGV Drive Wheel Sinolift Pneumatic Wheel Reach Dobot Recanvia

Technical parameters of vertical steering wheel		Traction motor
Speed Ratio	7-120I	Motor Type	Servo/Brushless
Wheel Diameter	200 mm	Rated Power	750-3000W (Customizable)
Fastest Speed	20-200m/min	Rated Voltage	DC24/48,AC220
Maximum Load	1000KG	Rated Speed	3000RPM
Temperature	-10to+55°C	Rated torque	2.39-9.68N.m

Steering motor
Motor Type	Servo/Brushless	Rated Power	200-750W (Customizable)
Rated Voltage	DC24/48,AC220	Rated Speed	3000 RPM
Rated Torque	0.64-2.39N.m	Reducer Speed Ratio	30-120I
Mechanical Limit Range	±120°	Angle Limit	proximity switch NPN/PNP

Large power, heavy load & small turning radius.

It has a large torque output and driving traction.

Strong obstacle crossing ability,
climbing ability,
and certain wading ability.

Product Application

Product packaging and Transportation

Company Profile

Guangzhou Wisdom Wheel Science Technology LTD.

Guangzhou Wisdom Wheel Science Technology Ltd. is a high-tech enterprise integrating service research ,design, production,sales,service and system integration.with a number of independent intellectual property rights. including heavy-duty, shock-absorbing. low and Mini ,differential steering drive wheels,etc.,which are suitable for various application fields; Based on the application, the company independently designed and developed heavy-duty AGV,heavy-duty unmanned flatbed truck, omnidirectional forklift, special assembly AGV, service robot, AGV intelligent parking and other products,providing customers with customized AGV customization and wholeheartedly providing technology Support and expand the application field of AGV.

China International Logistiscs Robot Exhibitions.

Asia International AGV Exhibition

Asia International Logistics Exhibition

Certifications

FAQ

Q: Can your company adjust the product according to the customer's situation?
 A: Yes. We will send you the steering wheel order configuration table. Customers can fill in the relevant parameters according to their own situation. We can adjust the steering wheel parts according to customer needs
 There are speed ratio, speed, walking motor, motor voltage, brake, etc., there are more detailed instructions in the product
 parameter table, we welcome customization.

 Q: How about your after-sale service?
 A: We can provide technical support via online communication. Within 24 hours technical support by email, calling or door-to-door service.

 Q: How can I trust the quality of your products ?
 A: The AGV steering wheel assembly series products are independently researched and developed by our company. We have variety of international quality certificates, We have our own unique planetary reducer developed and designed, we do a series of product tests before shipping.

 Q: How can we make sure about the machine quality after placing the order?
 A: Before delivery, we will running half hour of the machine to checking the stability and sending you the testing video until you satisfy. We will setting all the parameters well.
