ZL-C240 500KG Differential Drive Wheel Damping Stroke 10mm Polyurethane Ets Accelerate

Product Categories

Guangzhou Wisdom Wheel Science Technology Ltd.

Contact Now

ZL-C240 500KG Differential Drive Wheel Damping Stroke 10mm Polyurethane Ets Accelerate

Name: ZLC240 500KG Differential Drive Wheel Damping Stroke 10mm Polyurethane Ets Accelerate
Brand: ZHLUN
Price: 2200 USD

Wholesale ZL-C240 500KG Differential Drive Wheel Damping Stroke 10mm Polyurethane Ets Accelerate from china suppliers

Brand Name : ZHLUN

Model Number : ZL-C240

Place of Origin : China

MOQ : 1

Price : $2200-3520

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 30 per month

Delivery Time : 30 days

Packaging Details : Wooden box

Warranty : 1 Year

Machinery Test Report : Provided

Services : support for custom

Load : 1T

Contact Now

ZL-C240 Differential Steering Drive Wheel Rated Load 500KG Damping Stroke 10mm Polyurethane Ets Accelerate Agv Wheels

Product Paramenters

ZL-C240 500KG Differential Drive Wheel Damping Stroke 10mm Polyurethane Ets Accelerate

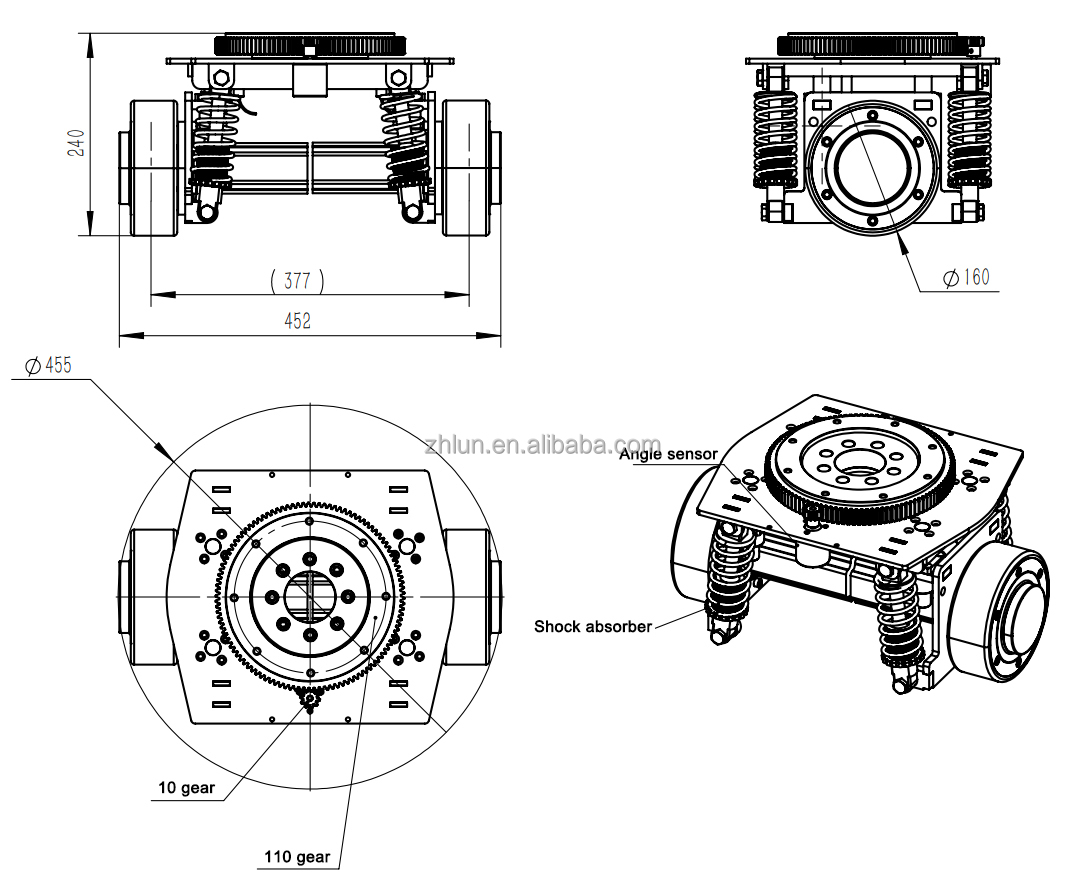

Technical parameters of differentialsteering wheel		Traction motor
Speed Ratio	7-120I	Motor Type	Servo/Brushless
Wheel Diameter	160mm	Rated Power	750-3000W (Customizable)
Fastest Speed	20-200m/min (Customizable)	Rated Voltage	DC24/48,AC220
Maximum Load	500KG (Customizable)	Rated Speed	3000RPM (Customizable)
Shock Stroke	±10mm	Rated torque	2.39-9.68N.m Customizable)
Damping Pressure	50-350Kg
Temperature	-10to+55°C

Advantages

Suitable for the development of latent AGV

Low installation position(height)

Classic Model

This model have been sale for many years.It renewed every year,the accessories developed every year too.

Product Application

Product packaging and Transportation

Company Profile

Guangzhou Wisdom Wheel Science Technology LTD.

Guangzhou Wisdom Wheel Science Technology Ltd. is a high-tech enterprise integrating service research ,design, production,sales,service and system integration.with a number of independent intellectual property rights. According to application requirements, various types of AGV steering wheel drive assemblies with independent intellectual property rights have been developed, including heavy-duty, shock-absorbing. low and Mini ,differential steering drive wheels,etc.,which are suitable for various application fields; Based on the application, the company independently designed and developed heavy-duty AGV,heavy-duty unmanned flatbed truck, omnidirectional forklift, special assembly AGV, service robot, AGV intelligent parking and other products,providing customers with customized AGV customization and wholeheartedly providing technology Support and expand the application field of AGV.

China International Logistiscs Robot Exhibitions.

Asia International AGV Exhibition

Asia International Logistics Exhibition

Certifications

FAQ

Q: Can your company adjust the product according to the customer's situation?
 A: Yes. We will send you the steering wheel order configuration table. Customers can fill in the relevant parameters according to their own situation. We can adjust the steering wheel parts according to customer needs
 There are speed ratio, speed, walking motor, motor voltage, brake, etc., there are more detailed instructions in the product
 parameter table, we welcome customization.

 Q: Are you trading company or manufacturer?
 A: We are manufacturer.

 Q: What about your lead time?
 A: It is up to the quantity and stocking.

 If you want to know more product details outside the picture, please contact us.
